The Ultimate Miniature Control: Exploring the KCD11-3P Rocker Switch

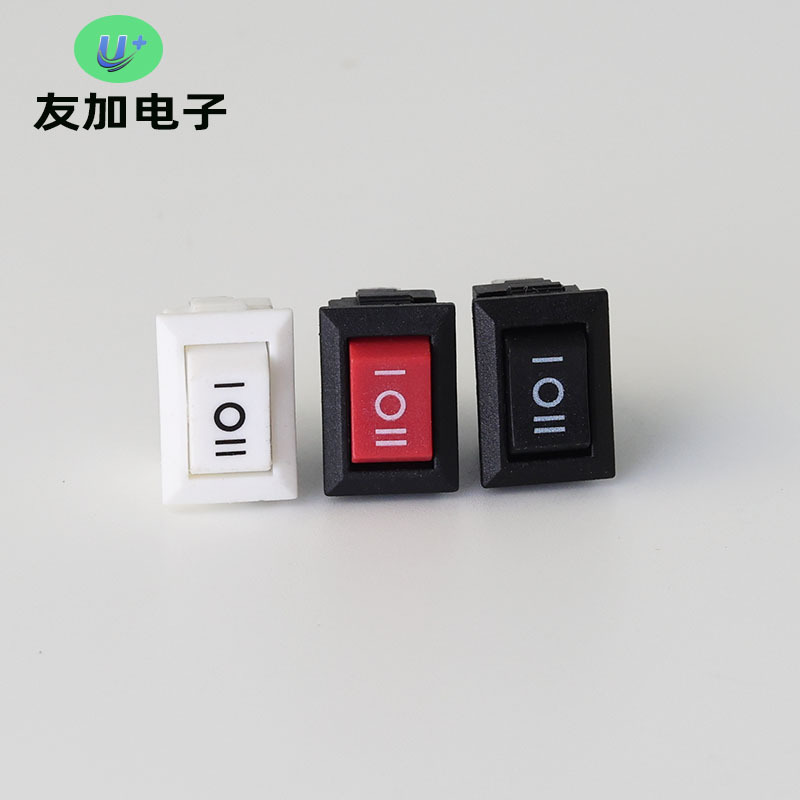

In the world of electronics and appliance design, the humble switch is a critical component that demands reliability, safety, and ease of use. For engineers, hobbyists, and manufacturers seeking a premium miniaturized solution, the KCD11-3P Rocker Switch from Youjia Electronics stands out as an exceptional choice. This compact 3-pin, 3-position switch packs robust performance into its 10x15mm footprint, making it ideal for a wide array of applications from home appliances to industrial control panels.

Unpacking the Key Specifications

Let's delve into what makes this switch a reliable workhorse. With an AC/DC 220V, 3A rating, it handles standard power requirements with ease. Its electrical life of 10,000 cycles and matching mechanical life ensure long-term durability for frequent operation. The switch boasts impressive safety metrics, including a contact resistance of ≤30mΩ, insulation resistance of ≤100MΩ, and a withstand voltage of 500V, all contributing to stable and secure performance. Certified with CE, it adheres to international standards for quality and safety.

Design and Build for Demanding Environments

The physical construction of the D11-3P switch is engineered for resilience. The housing is made from high-grade PA66 material, known for its excellent thermal stability and mechanical strength within the operating temperature range of -10°C to 85°C. A key feature is its IP65防护等级, offering complete protection against dust ingress and low-pressure water jets from any direction. This makes it suitable for devices that may be exposed to challenging conditions, including outdoor equipment or kitchen appliances.

Versatility in Application and Installation

True to its design, this mini rocker switch finds its place across numerous domains. Its primary application scope is in home appliance equipment, but it is equally perfect for power tools, instrumentation, automotive interiors, and DIY electronic projects. The white rocker with a solid red actuator provides clear visual indication of its 3-position state (On-Off-On or other configurations). Installation is streamlined with flexible 接线方式: wiring terminal/soldering, allowing for both quick-connect and permanent solder connections to suit different production or prototyping needs.

Why Choose the Youjia D11-3P Switch?

Choosing components is about balancing specs with trust. Youjia Electronics offers a 1-year quality guarantee on this switch, underscoring their confidence in its manufacturing. The combination of a compact form factor, 3C rated for voltages under 250V, robust防护功能: dustproof design, and high cycle life presents a compelling package. Whether you are upgrading a product line or embarking on a custom project, this switch delivers professional-grade performance without occupying precious panel space.

Conclusion: A Small Part for Big Reliability

The KCD11-3P船型开关 is more than just a switch; it's a dependable interface between user and machine. Its meticulous design focusing on safety (certifications), endurance (10,000+ cycles), and environmental protection (IP65, wide temperature range) makes it a superior choice for both commercial and enthusiast applications. For your next design that requires a compact, versatile, and utterly reliable control switch, look no further than this high-performance component from Youjia Electronics.
