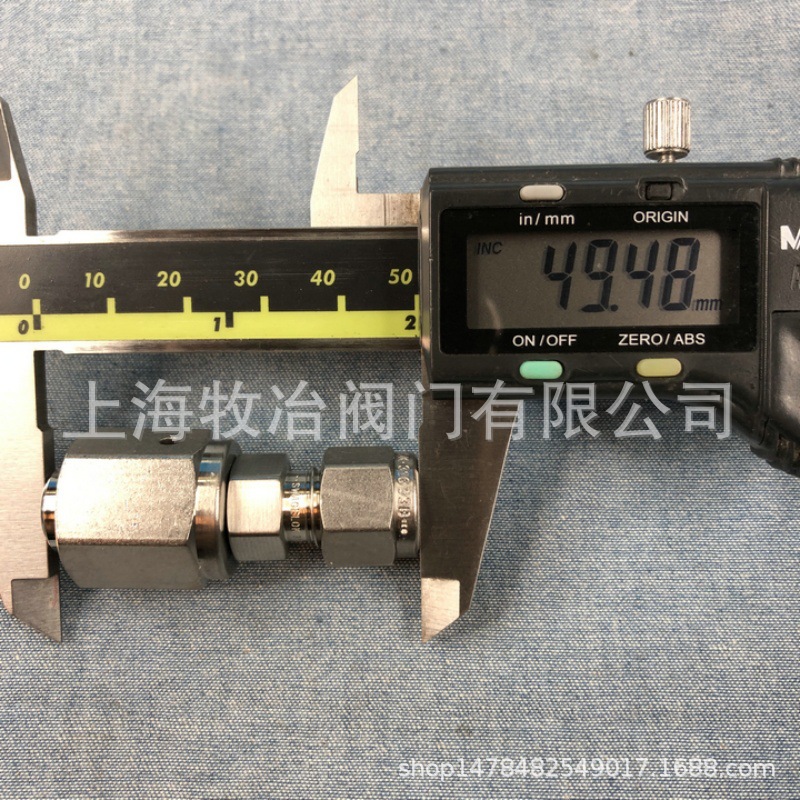

Swagelok SS-4-WVCR-400: Precision Engineered for Ultimate System Integrity

In the world of critical fluid and gas handling, where leaks are unacceptable and purity is paramount, the choice of fittings is non-negotiable. For professionals seeking uncompromising reliability, the Swagelok SS-4-WVCR-6-400 Face Seal Fitting stands as a benchmark of performance and quality. This precision component, proudly manufactured in the USA, is designed to deliver a leak-tight seal in the most demanding applications, from semiconductor fabrication to analytical instrumentation.

Engineered for versatility, this fitting features a 1/4 inch VCR male internal thread on one end and a 1/4 inch tube fitting connection on the other. This unique SS-4-WVCR-6-400 configuration provides a seamless bridge between VCR face seal systems and standard Swagelok tube fitting installations, offering exceptional design flexibility. The VCR (V-Conical Ring) gasket seal mechanism ensures a metal-to-metal seal that is consistently reliable, even under thermal cycling and vibration.

Key Features and Technical Advantages

• Superior Sealing Technology: Utilizes a VCR face seal with a metal gasket (sold separately) for a helium-leak-tight seal, ideal for ultra-high purity and hazardous service.
• Robust Construction: Made from high-grade 316 stainless steel, offering excellent corrosion resistance and durability in aggressive environments.
• Universal Compatibility: Designed for general use with a wide range of fluids and gases, making it a versatile stock item for maintenance and new builds.
• Precision Machining: Swagelok's renowned manufacturing guarantees precise threads and surfaces for easy installation and optimal performance.
• Standardized Sizing: With a 1/4 inch tube connection and comprehensive available tube ODs, integration into existing systems is straightforward.

Ideal Applications for Reliable Performance

The Swagelok SS-4-WVCR-6-400 is not just a fitting; it's a critical component for system integrity. Its primary applications span industries where safety and zero leakage are critical:

• High-Purity Gas Systems: Essential in semiconductor, solar cell, and pharmaceutical manufacturing.
• Analytical and Laboratory Equipment: Used in GC, MS, and other instruments requiring clean, leak-free sample lines.
• Vacuum Systems: Provides reliable seals in high and ultra-high vacuum applications.
• Process Instrumentation: Ideal for connecting pressure gauges, transmitters, and valves in harsh industrial settings.

Why Choose This Swagelok Fitting?

Selecting the SS-4-WVCR-6-400 means investing in peace of mind. Swagelok's global reputation is built on consistency and quality. This fitting comes with the assurance of traceable materials and precision engineering that meets stringent international standards. Furthermore, the availability of this item from select distributors, often with customer-friendly policies like a 7-day no-reason return option, makes procurement convenient and risk-free for your projects.

Conclusion: The Smart Connection for Critical Systems

For system designers, maintenance engineers, and procurement specialists, the Swagelok SS-4-WVCR-6-400 represents the optimal choice for creating robust, leak-free connections. Its combination of VCR face seal security, Swagelok tube fitting convenience, and American-made quality ensures long-term system reliability and performance. When failure is not an option, trust in the precision of Swagelok to seal your success.

Model: SS-4-WVCR-6-400
Connection: 1/4 in. VCR Male Internal Thread x 1/4 in. Tube Fitting
Material: 316 Stainless Steel
Brand: Swagelok
Origin: USA
